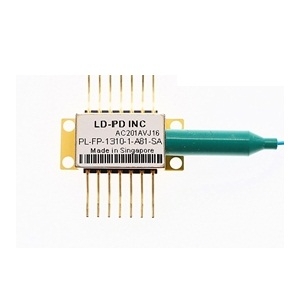

PL-FP-1310-A-A81-PA-FBG

Laser Diode by LD-PD Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

The PL-FP-1310-A-A81-PA-FBG from LD-PD Inc is a Laser Diode with Wavelength 1310 nm (Center), Output Power 20 mW, Output Power 20 mW, Threshold Current 30 to 40 mA, Operating Current 200 to 300 mA. More details for PL-FP-1310-A-A81-PA-FBG can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL-FP-1310-A-A81-PA-FBG
  • Manufacturer
    LD-PD Inc
  • Description
    1310nm FP PM laser diode (with FBG)

General Parameters

  • Technology
    Fiber-Bragg-Grating (FBG)
  • Type
    Fiber-Coupled Laser Diode
  • Wavelength
    1310 nm (Center)
  • Output Power
    20 mW
  • Output Power
    20 mW
  • Spectral Width (FWHM)
    0.3 nm
  • Wavelength Tolerance
    ±1 nm
  • Polarization Extinction Ratio
    17 to 20 dB
  • Threshold Current :
    30 to 40 mA
  • Forward Voltage
    1.8 to 2.5 V
  • Operating Current
    200 to 300 mA
  • Operating Current
    200 to 300 mA
  • Thermistor Resistance
    9.5 to 10.5 kOhms
  • Fiber Modes
    Polarization Maintaining
  • Photo Diode Dark Current
    0.1 µA
  • Package Type
    Butterfly
  • Package
    14-pin butterfly

Connections & Interface

  • Connector
    FC/APC
