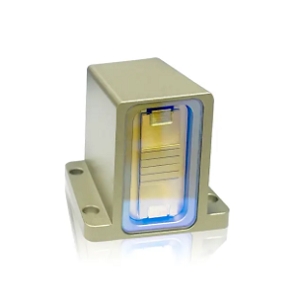

LM-808-Q1600-F-G16-MA

Laser Diode by Lumispot Tech
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumispot Tech.

The LM-808-Q1600-F-G16-MA from Lumispot Tech is a Laser Diode with Wavelength 808 nm (Center), Output Power 1600 W (Peak), Output Power 1600 W (Peak), Operating Current <50 A, Operating Current <50 A. More details for LM-808-Q1600-F-G16-MA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LM-808-Q1600-F-G16-MA
  • Manufacturer
    Lumispot Tech
  • Description
    808 nm QCW Laser Diode Vertical Stack

Applications

  • Application
    Hair Removal, Pump solid-state laser

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    QCW Laser, Pulsed Laser
  • Wavelength
    808 nm (Center)
  • Output Power
    1600 W (Peak)
  • Output Power
    1600 W (Peak)
  • Pulse Duration
    <200 ms
  • Configuration
    Bar, Stack
  • Wavelength Tolerance
    ±10 nm
  • Duty Cycle
    <20%
  • Operating Current
    <50 A
  • Operating Current
    <50 A
  • Operating Voltage
    <32 V
  • Peak Power
    1600 W
  • Bar Configuration
    Vertically Stack
  • Cooling Method
    Water-Cooled
  • No. of Bars
    16
  • Emitting Area
    10 x 33 mm
  • Package Type
    Bar
  • Package
    Bar
  • Stack/Array
    Vertically Stack
  • Note
    Spacing between bars: 2 mm, Water flow quantity: >4L/min

Temperature

  • Storage Temperature
    -10 to 50 Degree C
