IMM1040-520-1-E-X

Laser by IMM Photonics

Note: Your Quotation Request will be directed to IMM Photonics.

The IMM1040-520-1-E-X from IMM Photonics is a Laser with Wavelength 520 nm, Power 0.95 mW, Operating Temperature -10 to 60 Degree C. More details for IMM1040-520-1-E-X can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IMM1040-520-1-E-X
  • Manufacturer
    IMM Photonics
  • Description

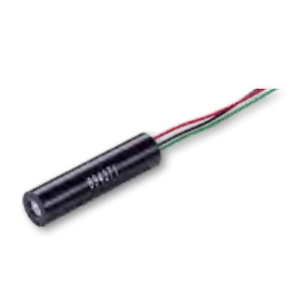

    520 nm Green Laser Module

General Parameters

  • Type
    Laser Module, Alignment Laser, Laser Pointer
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Entertainment
  • Application
    Laser Pointers, Alignment, Sensing, Test & Measurement
  • Operation Mode
    CW Laser
  • Wavelength
    520 nm
  • Power
    0.95 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Beam Divergence :
    0.4 mrad
  • Modulation Frequency
    0 to 200 kHz
  • Voltage
    2.5 to 10 V

Physical Properties

  • Dimension
    10 x 40 mm (Dia. x L)
  • Beam Area
    1 x 3 mm

Environmental Conditions

  • Operating Temperature
    -10 to 60 Degree C
