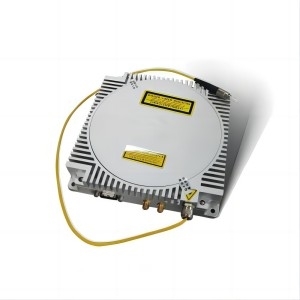

1064nm High-Peak Fiber Laser

Laser by Lumispot Tech

Note: Your Quotation Request will be directed to Lumispot Tech.


Product Specifications

View similar products

Product Details

  • Part Number
    1064nm High-Peak Fiber Laser
  • Manufacturer
    Lumispot Tech

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Defense / Military & Aerospace, Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    TOF LIDAR Detection, Precision Applications, Material Processing, Research and Development
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1060 to 1068 nm
  • Spectral Width :
    0.5 nm
  • Power
    3 W
  • Pulse Width
    5 to 20 ns
  • Repetition Rate
    5 to 2000 kHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Near-Infrared
  • Polarization Orientation
    Random
  • Beam Quality Factor (M2) :
    1.3
  • Power Consumption
    30 W
  • Power Stability
    5%
  • Peak Power
    8 to 12 kW
  • Numerical Aperture
    0.08/0.22
  • Interface
    TTL
  • Voltage
    24 to 32 V
  • Note
    Pulse jitter: 200 ps

Physical Properties

  • Dimension
    160 x 160 x 30 mm
  • Weight
    300 g
  • Fiber length
    10 to 500 mm

Environmental Conditions

  • Cooling Method
    Conduction Cooled
  • Operating Temperature
    -40 to 65 Degree C
  • Storage Temperature
    -40 to 85 Degree C
