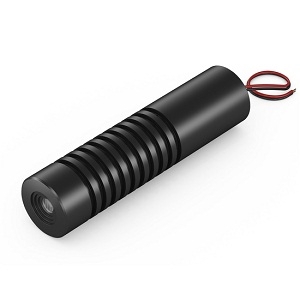

DA520-1-24(20x80)-QCW

Laser by Picotronic
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The DA520-1-24(20x80)-QCW from Picotronic is a Laser with Wavelength 520 nm, Power 1 mW, Output Power (CW) 1 mW, Operating Temperature -10 to 60 Degree C, Storage Temperature -40 to 80 Degree C. More details for DA520-1-24(20x80)-QCW can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DA520-1-24(20x80)-QCW
  • Manufacturer
    Picotronic
  • Description
    isolated dot lasermodule, green, 520nm, 1mW, 24V DC, 20x80mm, class 2, internal modulation 1kHz

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    520 nm
  • Power
    1 mW
  • Output Power (CW)
    1 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Beam Divergence :
    0.1 mrad
  • Beam Shape
    Dot
  • Current
    10 to 150 mA
  • Laser Class
    Class 2
  • Modulation Frequency
    1 kHz
  • Output Aperture
    8 mm
  • Voltage
    23.6 to 24.4 VDC
  • Note
    Material: Aluminium, Cable length: 200 mm, Operating Distance: 40 m

Physical Properties

  • Dimension
    Ø20 x 80 mm
  • Weight
    20 g
  • Beam Area
    <10 mm@40m

Environmental Conditions

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -40 to 80 Degree C

Technical Documents
Click to view more product details on manufacturer's website
