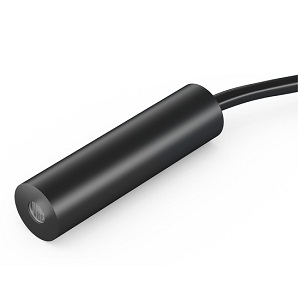

DC650-0.4-24(12x45)-C5000

Laser by Picotronic
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The DC650-0.4-24(12x45)-C5000 from Picotronic is a Laser with Wavelength 650 nm, Power 0.4 mW, Output Power (CW) 0.4 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for DC650-0.4-24(12x45)-C5000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DC650-0.4-24(12x45)-C5000
  • Manufacturer
    Picotronic
  • Description
    isolated dot lasermodule, red, 650nm, 0.4mW, 24V DC, 12x45mm, class 1, cable length 5m

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    0.4 mW
  • Output Power (CW)
    0.4 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.4 mrad
  • Beam Shape
    Dot
  • Current
    2 to 10 mA
  • Laser Class
    Class 1
  • Output Aperture
    3.5 mm
  • Voltage
    23 to 24.3 VDC
  • Note
    Material: Aluminium, Cable length: 5000 mm, Operating Distance: 10 m

Physical Properties

  • Dimension
    Ø12 x 45 mm
  • Weight
    150 g
  • Beam Area
    <4 mm@5m
  • Beam Diameter
    3 mm

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C

Technical Documents
Click to view more product details on manufacturer's website
