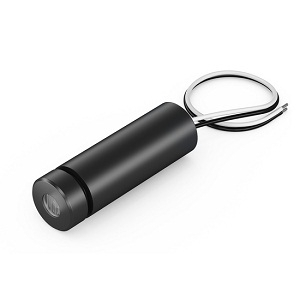

DC650-1-3(8x25)-C500

Laser by Picotronic
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The DC650-1-3(8x25)-C500 from Picotronic is a Laser with Wavelength 650 nm, Power 1 mW, Output Power (CW) 1 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for DC650-1-3(8x25)-C500 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DC650-1-3(8x25)-C500
  • Manufacturer
    Picotronic
  • Description
    focusable isolated Dot lasermodule, red, 650nm, 1mW, 3V DC, 8x25mm, class 2

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    1 mW
  • Output Power (CW)
    1 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.4 mrad
  • Beam Shape
    Dot
  • Current
    10 to 30 mA
  • Laser Class
    Class 2
  • Output Aperture
    3.5 mm
  • Voltage
    2.7 to 3.3 VDC
  • Note
    Material: Aluminium, Cable length: 500 mm, Operating Distance: 10 m

Physical Properties

  • Dimension
    Ø8 x 25 mm
  • Weight
    12 g
  • Beam Area
    adjustable

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
