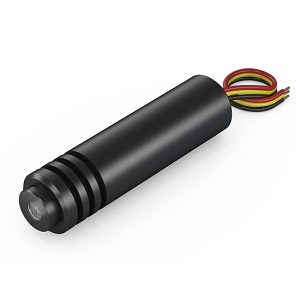

DD650-25-3-F(16x50)

Laser by Picotronic
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The DD650-25-3-F(16x50) from Picotronic is a Laser with Wavelength 650 nm, Power 25 mW, Output Power (CW) 25 mW, Operating Temperature -10 to 40 Degree C, Storage Temperature -40 to 80 Degree C. More details for DD650-25-3-F(16x50) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DD650-25-3-F(16x50)
  • Manufacturer
    Picotronic
  • Description
    focusable isolated Dot lasermodule, red, 650nm, 25mW, 3V DC, 16x50mm, class 3B

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    25 mW
  • Output Power (CW)
    25 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.5 mrad
  • Beam Shape
    Dot
  • Current
    40 to 130 mA
  • Laser Class
    Class 3B
  • Output Aperture
    8 mm
  • Voltage
    2.7 to 3.3 VDC
  • Note
    Material: Aluminium, Cable length: 100 mm, Operating Distance: 100 m

Physical Properties

  • Dimension
    Ø16 x 50 mm
  • Weight
    23.5 g
  • Beam Area
    adjustable

Environmental Conditions

  • Operating Temperature
    -10 to 40 Degree C
  • Storage Temperature
    -40 to 80 Degree C

Technical Documents
Click to view more product details on manufacturer's website
