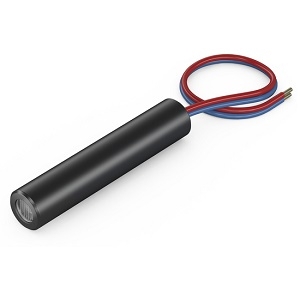

LC650-1-3(6x30)-F100

Laser by Picotronic
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The LC650-1-3(6x30)-F100 from Picotronic is a Laser with Wavelength 650 nm, Power 1 mW, Output Power (CW) 1 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for LC650-1-3(6x30)-F100 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LC650-1-3(6x30)-F100
  • Manufacturer
    Picotronic
  • Description
    Line laser module, red, 90°, 650nm, 1mW, 3V DC, 6x30mm, class 1, focus 100mm

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical
  • Application
    Imaging, Oncology, Laser Surgery, Medical Imaging
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    1 mW
  • Output Power (CW)
    1 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.4 mrad
  • Beam Shape
    Line
  • Current
    15 to 40 mA
  • Laser Class
    Class I
  • Output Aperture
    3.5 mm
  • Voltage
    2.7 to 3.3 VDC
  • Note
    Material: Bronze, Cable length: 100 mm, Operating Distance: 0.1 m, Fan Angle: 90°, Thickness: 0.1 mm@0.1m

Physical Properties

  • Dimension
    Ø6 x 30 mm
  • Weight
    4.2 g

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
