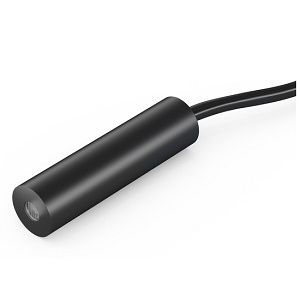

LDI650-5-24(14x50)-F1000

Laser by Picotronic

Note: Your Quotation Request will be directed to Picotronic.

The LDI650-5-24(14x50)-F1000 from Picotronic is a Laser with Wavelength 650 nm, Power 5 mW, Output Power (CW) 5 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for LDI650-5-24(14x50)-F1000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LDI650-5-24(14x50)-F1000
  • Manufacturer
    Picotronic
  • Description
    Isolated Line laser module, red, 90°, 650nm, 5mW, 24V DC, 14x50mm, class 1, cablelength 2m

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    5 mW
  • Output Power (CW)
    5 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.5 mrad
  • Beam Shape
    Line
  • Current
    3 to 25 mA
  • Laser Class
    Class I
  • Output Aperture
    5.5 mm
  • Voltage
    21.6 to 26.4 VDC
  • Note
    Material: Aluminium, Cable length: 2000 mm, Operating Distance: 1 m, Fan Angle: 90°, Thickness: 1 mm@1m

Physical Properties

  • Dimension
    Ø14 x 50 mm
  • Weight
    60 g

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
