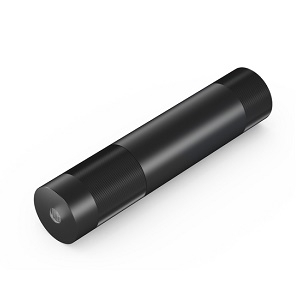

LE650-16-3-F-S(22x100)90

Laser by Picotronic

Note: Your Quotation Request will be directed to Picotronic.

The LE650-16-3-F-S(22x100)90 from Picotronic is a Laser with Wavelength 650 nm, Power 16 mW, Output Power (CW) 16 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for LE650-16-3-F-S(22x100)90 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LE650-16-3-F-S(22x100)90
  • Manufacturer
    Picotronic
  • Description
    Focusable Line laser module, red, 90°, 650nm, 16mW, 3V DC, 22x100mm, class 2

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research
  • Application
    Imaging
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    16 mW
  • Output Power (CW)
    16 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.6 mrad
  • Beam Shape
    Line
  • Current
    35 to 105 mA
  • Laser Class
    Class II
  • Output Aperture
    4.5 mm
  • Voltage
    2.7 to 3.3 VDC
  • Note
    Material: Aluminium, Operating Distance: 5 m, Fan Angle: 90°

Physical Properties

  • Dimension
    Ø22 x 100 mm
  • Weight
    81 g

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
