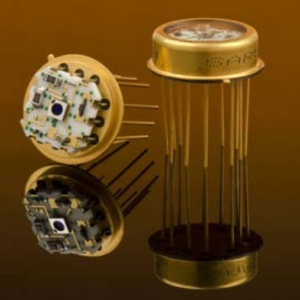

SAR1500H1B

Photodiode by Laser Components

Note: Your Quotation Request will be directed to Laser Components.

The SAR1500H1B from Laser Components is a Photodiode with Wavelength Range 400 to 1000 nm, Bandwidth DC to 10 MHz, Active Area Diameter 1.5 mm. More details for SAR1500H1B can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SAR1500H1B
  • Manufacturer
    Laser Components
  • Description
    Silicon, InGaAs Avalanche photodiode from 400 to 1000 nm

Applications

  • Application
    Rangefinding / LIDAR, Optical communication systems, Laser scanners, Spectroscopy, Fluorescence, Medical

General Parameters

  • Configuration
    Single
  • Module
    No
  • Noise equivalent power(NEP) :
    30 to 55 fW/vHz
  • Output Voltage
    1.5 to 3 V
  • Package
    TO-8
  • Package Type
    TO-Can
  • Photodetector Type
    Avalanche
  • Operation Mode
    Photovoltaic
  • Wavelength Range
    400 to 1000 nm
  • Photodiode Material
    Silicon, InGaAs
  • Power Consumption
    300 mW
  • Supply Current
    30 mA
  • Supply Voltage
    ±6.5 V
  • Bandwidth
    DC to 10 MHz
  • Voltage Responsivity
    2.7 to 5 MV/W
  • Note
    Output noise density: 150 nV/vHz, Input referred noise density: 1.5 pA/vHz, Output offset voltage: 0.1 mV

Physical Properties

  • Active Area Diameter
    1.5 mm

Temperature

  • Operating Temperature display
    -40 to 85 Degree C
  • Storage Temperature
    -55 to 100 Degree C
