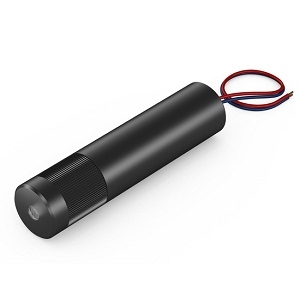

CB635-5-3-F(20x73)60DEG

Laser by Picotronic
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The CB635-5-3-F(20x73)60DEG from Picotronic is a Laser with Wavelength 635 nm, Power 5 mW, Output Power (CW) 5 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for CB635-5-3-F(20x73)60DEG can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CB635-5-3-F(20x73)60DEG
  • Manufacturer
    Picotronic
  • Description
    Focusable Isolated Cross laser module, red, 60°, 635nm, 5mW, 3V DC, 20x73mm, class 1

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    635 nm
  • Power
    5 mW
  • Output Power (CW)
    5 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.3 mrad
  • Beam Shape
    Cross
  • Current
    25 to 65 mA
  • Laser Class
    Class I
  • Output Aperture
    7 mm
  • Voltage
    2.7 to 3.3 VDC
  • Note
    Material: Aluminium, Cable length: 100 mm, Operating Distance: 3 m, Fan Angle: 60°

Physical Properties

  • Dimension
    Ø20 x 73 mm
  • Weight
    54 g

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C

Technical Documents
Click to view more product details on manufacturer's website
