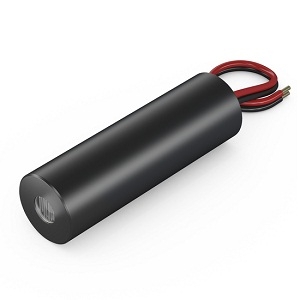

DA635-5-3(14x45)70117455

Laser by Picotronic
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The DA635-5-3(14x45)70117455 from Picotronic is a Laser with Wavelength 635 nm, Power 5 mW, Output Power (CW) 5 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for DA635-5-3(14x45)70117455 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DA635-5-3(14x45)70117455
  • Manufacturer
    Picotronic
  • Description
    isolated Dot lasermodule, red, 635nm, 5mW, 3V DC, 14x45mm, class 3R, power stability <1%, beam diameter round <2mm@20cm

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research
  • Application
    Imaging
  • Operation Mode
    CW Laser
  • Wavelength
    635 nm
  • Power
    5 mW
  • Output Power (CW)
    5 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.1 mrad
  • Beam Shape
    Dot
  • Current
    80 to 150 mA
  • Laser Class
    Class 3R
  • Output Aperture
    2 mm
  • Voltage
    2.7 to 3.3 VDC
  • Note
    Material: Aluminium, Cable length: 100 mm, Operating Distance: 10 m

Physical Properties

  • Dimension
    Ø14 x 45 mm
  • Weight
    18 g
  • Beam Area
    2 mm@20cm
  • Beam Diameter
    2 mm

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C

Technical Documents
Click to view more product details on manufacturer's website
